DRL for Flight Control

Fault-tolerant flight control for the Cessna Citation 500. First use of Deep Reinforcement Learning for a jet aircraft flight controller. The code was developed for a Master’s thesis entitled Deep Reinforcement Learning for Flight Control.

Installation

MacOS users can use the module straight away. Linux and Windows users are required to recompile the CitAST high-fidelity simulation model as instructed in docs/CitAST_for_Python.pdf.

1. Clone fault-tolerant-flight-control-drl

   cd <installation_path_of_your_choice>
   git clone https://github.com/kdally/fault-tolerant-flight-control-drl
   cd fault-tolerant-flight-control-drl


2. Create a new conda environment with the required packages

conda env create -f environment.yml
conda activate ftc-drl
python setup.py install

Usage

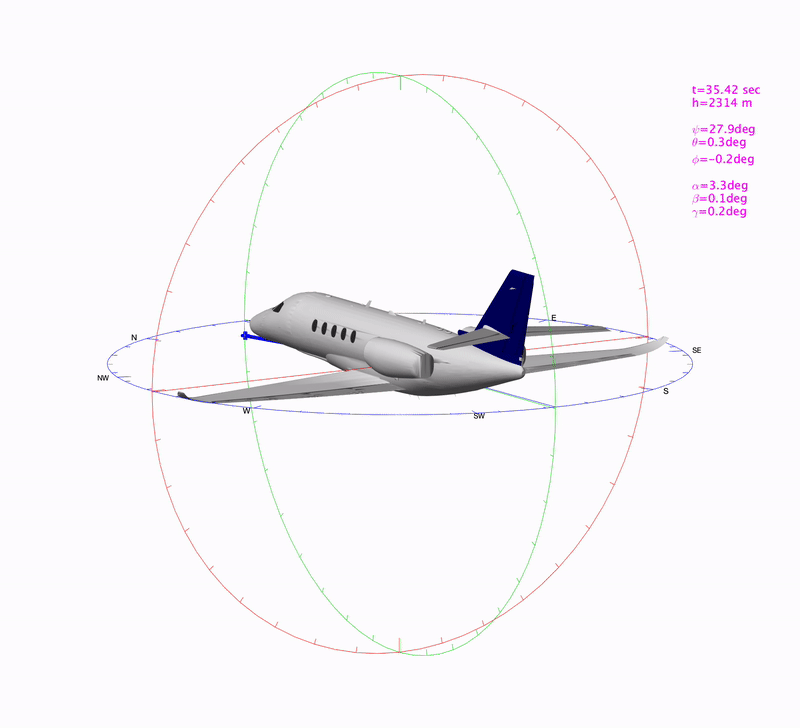

1. To fly the aircraft right away with pre-trained agents 🛩

   python tests/test_all.py

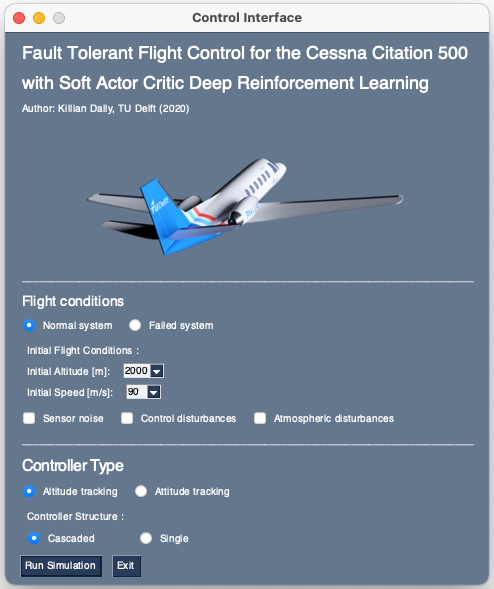

Select flight settings on the GUI. Default choices are recommended for unexperienced users.

1. To retrain the inner-loop and outer-loop controllers ⚙️

   python tests/train_inner_loop.py
   python tests/train_outer_loop.py


2. To perform a hyperparameter optimization 🎯

   python tests/optimization.py


Author

👤 K. Dally (Delft University of Technology MSc. Student)

• Github: @kdally
• LinkedIn: @kdally

Project developed as part of a Master’s Thesis at the Control & Simulation Department, Faculty of Aerospace Engineering at Delft University of Technology.

References

• Haarnoja, T., Zhou, A., Abbeel, P., and Levine, S. (2018) [paper][code]
• Haarnoja, T., Zhou, A., Abbeel, P., and Hartikainen, K. (2019) [paper][code]
• Hill, A. et al. (2018) [doc][code]
• Rodríguez, R. (2021) [article][code]
